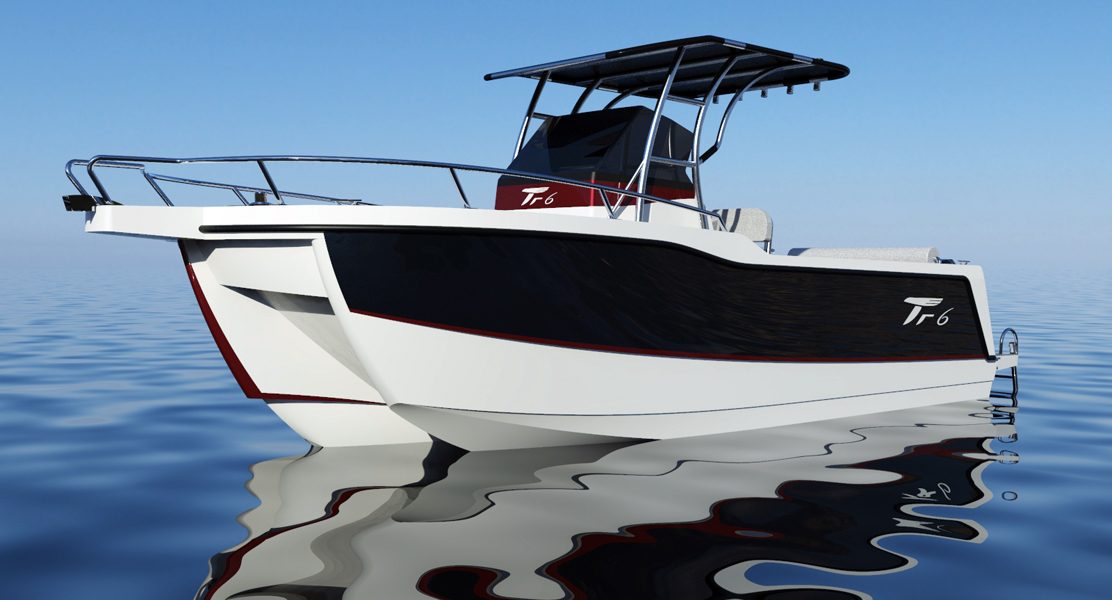

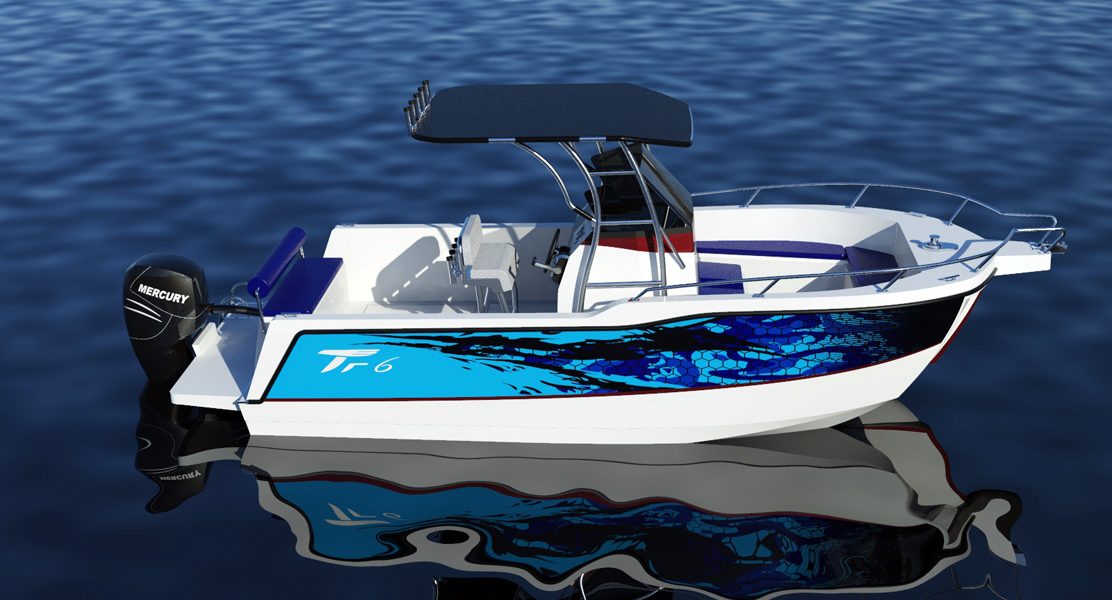

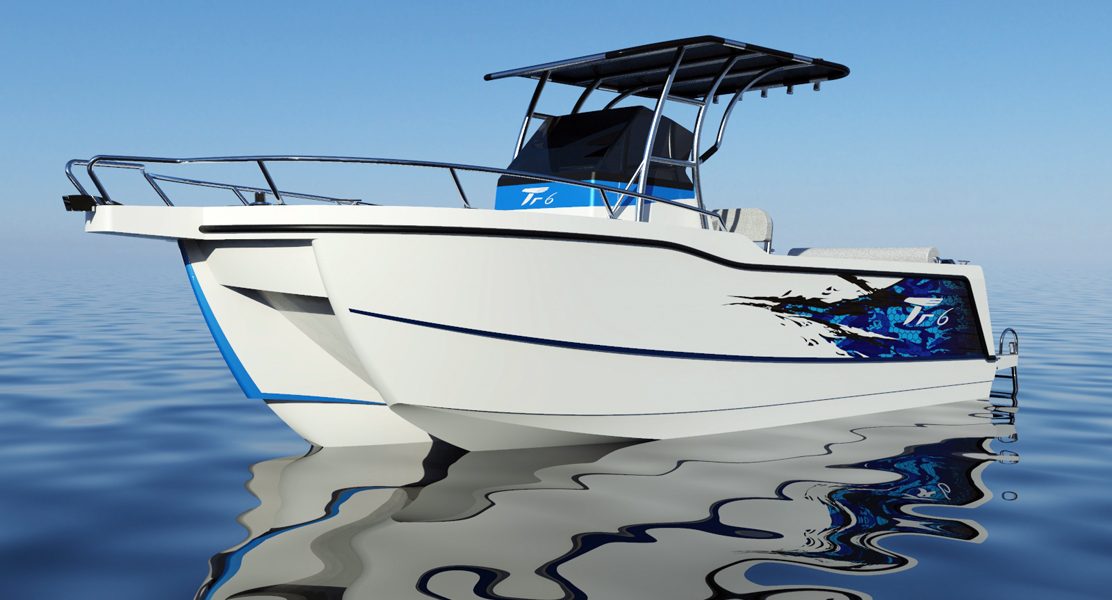

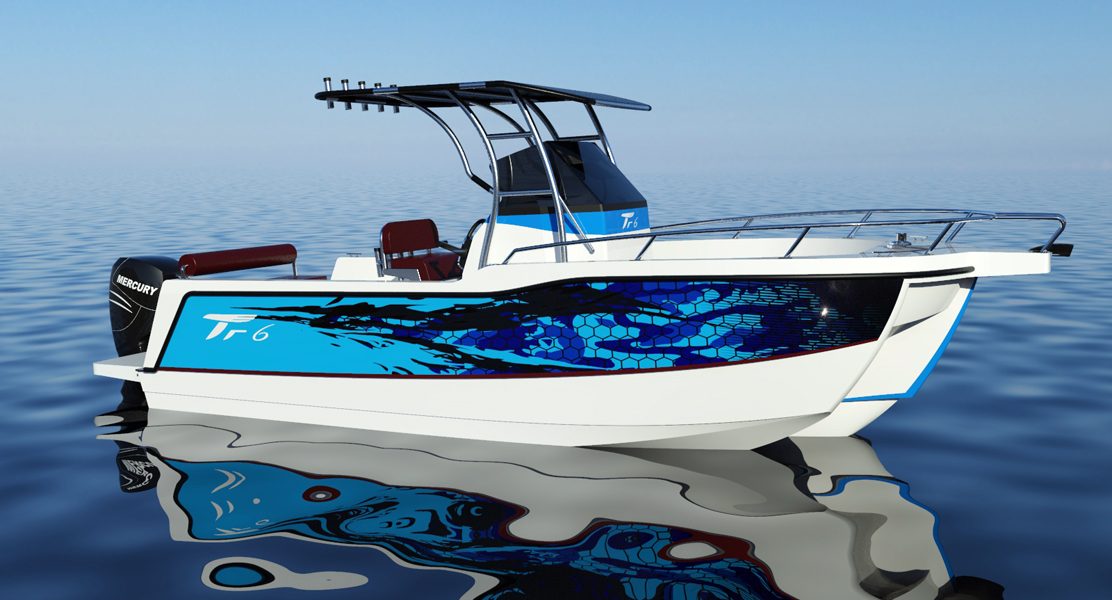

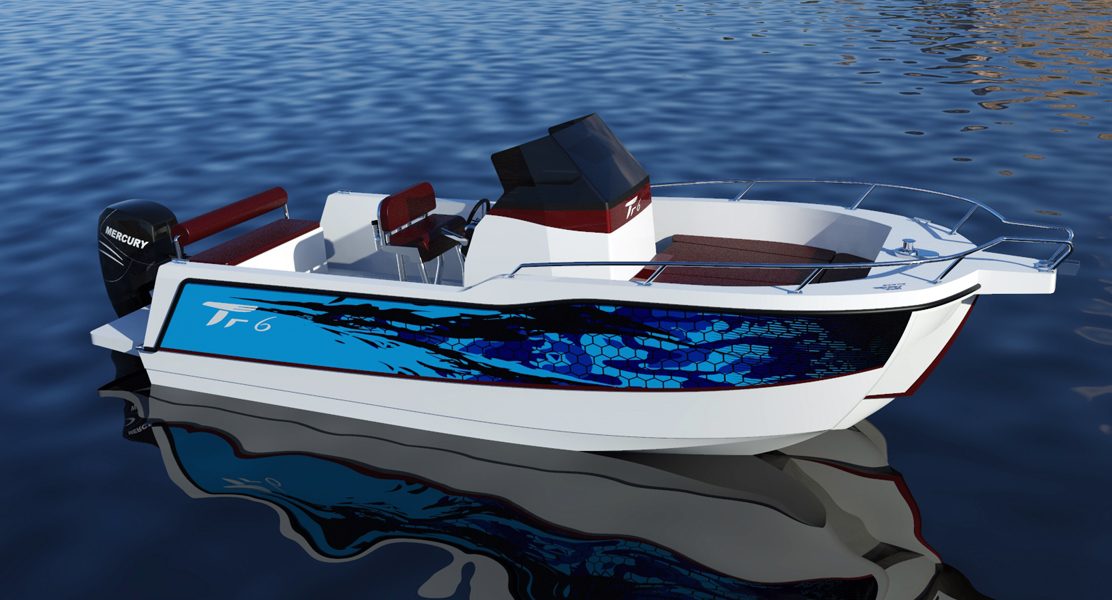

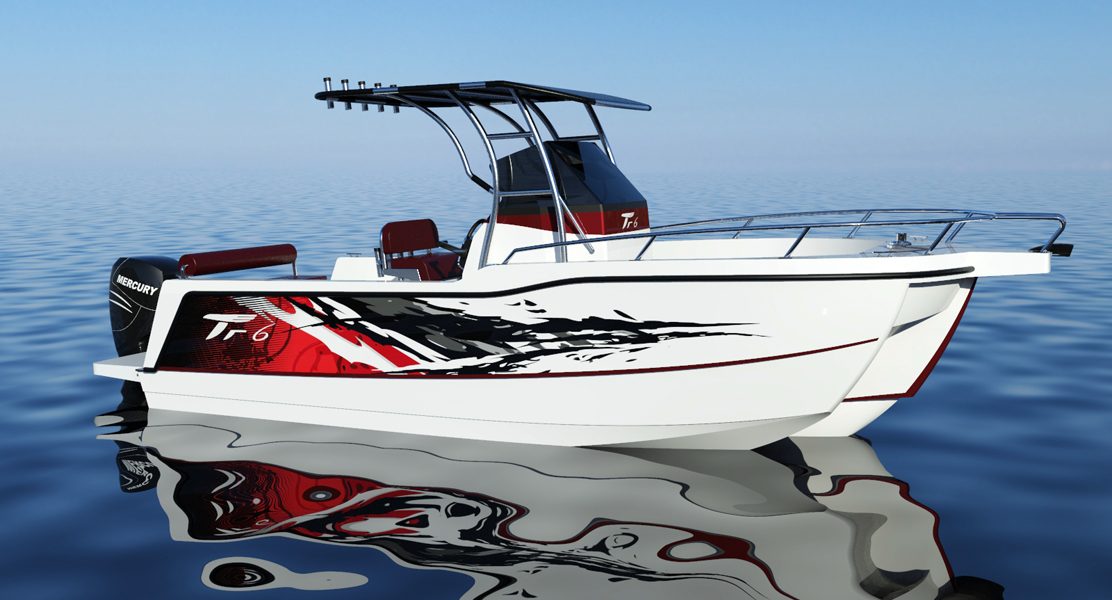

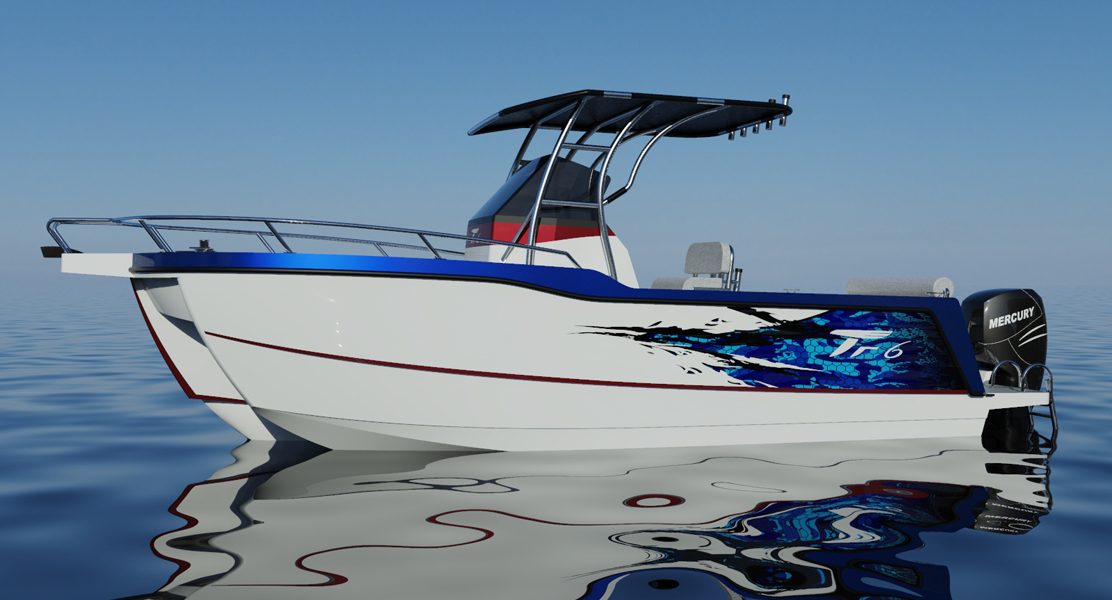

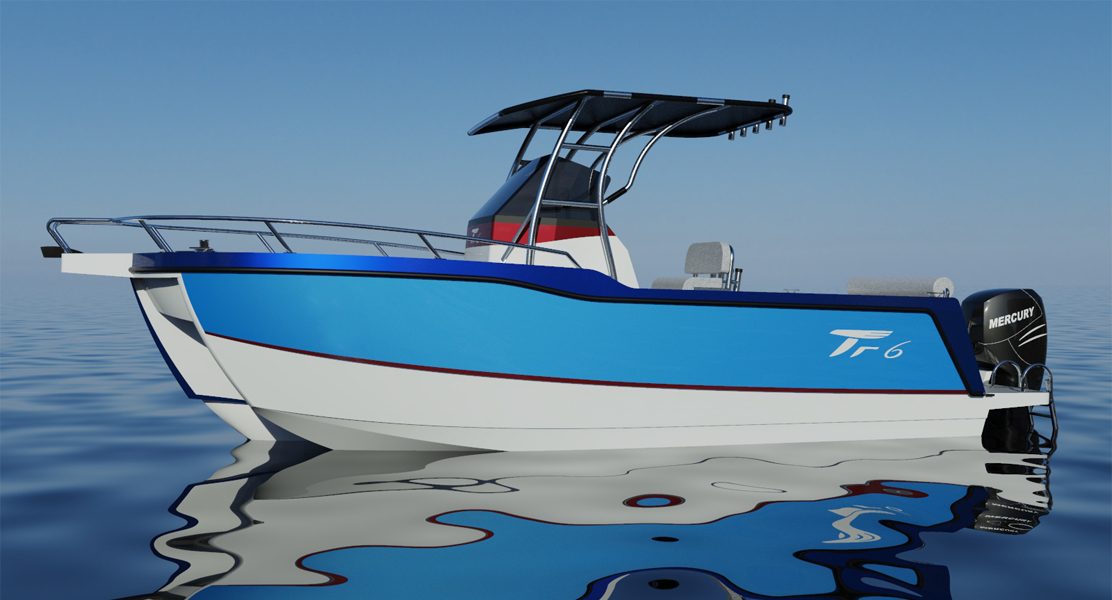

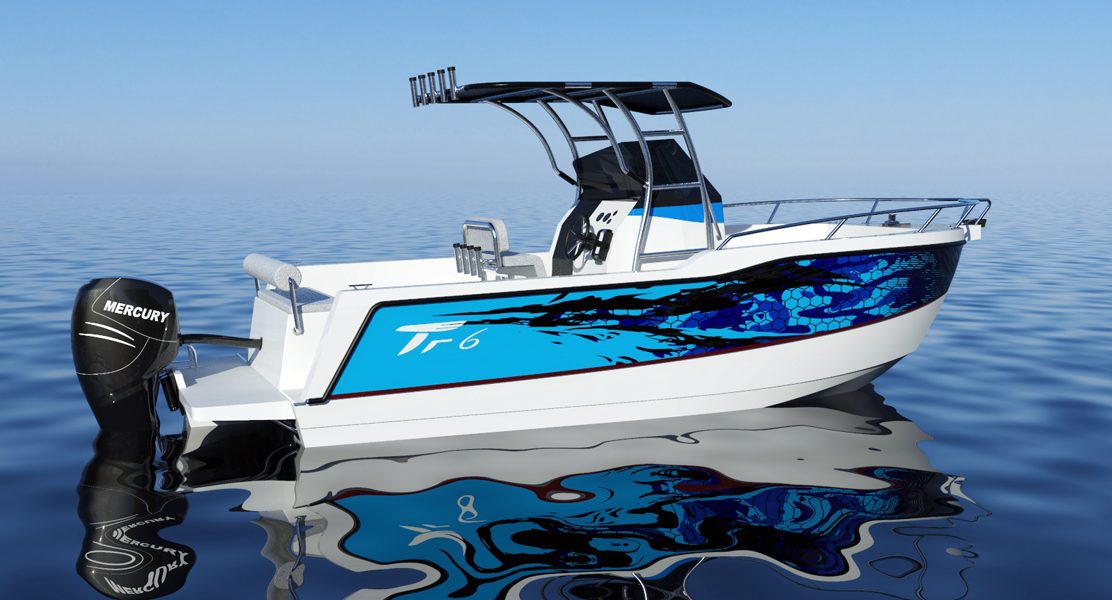

New TR6, the trimaran that completes the fleet of our shipyard together with the TR5, TR8 and TR12.

Overall length

6.70 m

Full sleeve

2.50 m

Weight (thread)

970 kg


B-4 C-8

Max draft 0.35 m

Material Vacuum infusion PRFV

Power max 200 CV

Power rec 150 CV

Hull length 5.95m

Suitable without qualification

Full description

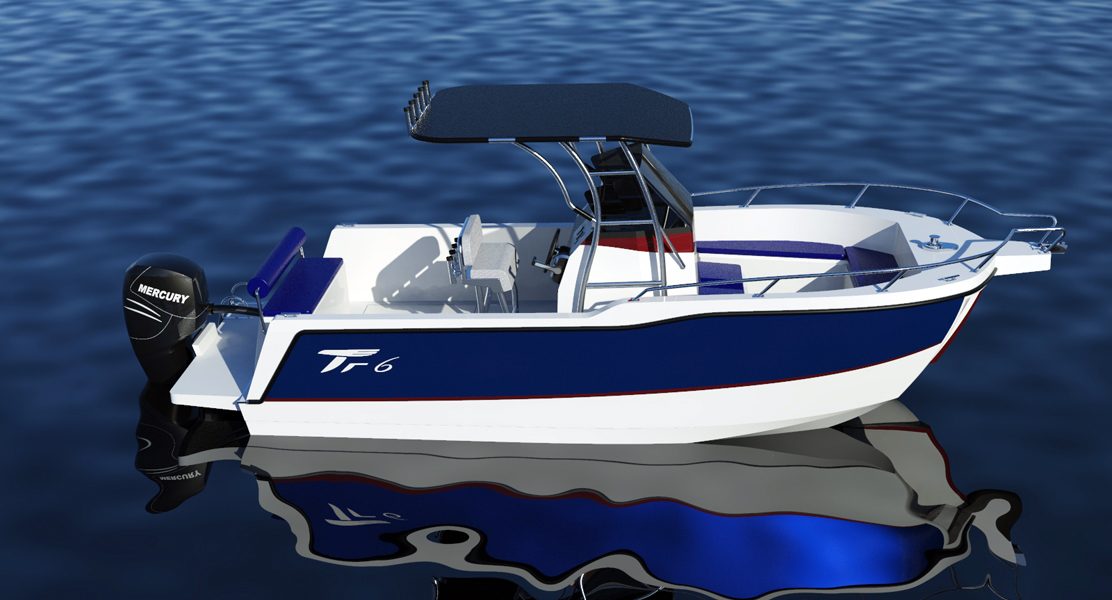

The TR6 is the new model that completes the trimaran fleet of our shipyard, joining the already known TR5, TR8 and TR12.

This model has been designed to respond to different functional programs, from recreational fishing to family day cruising.

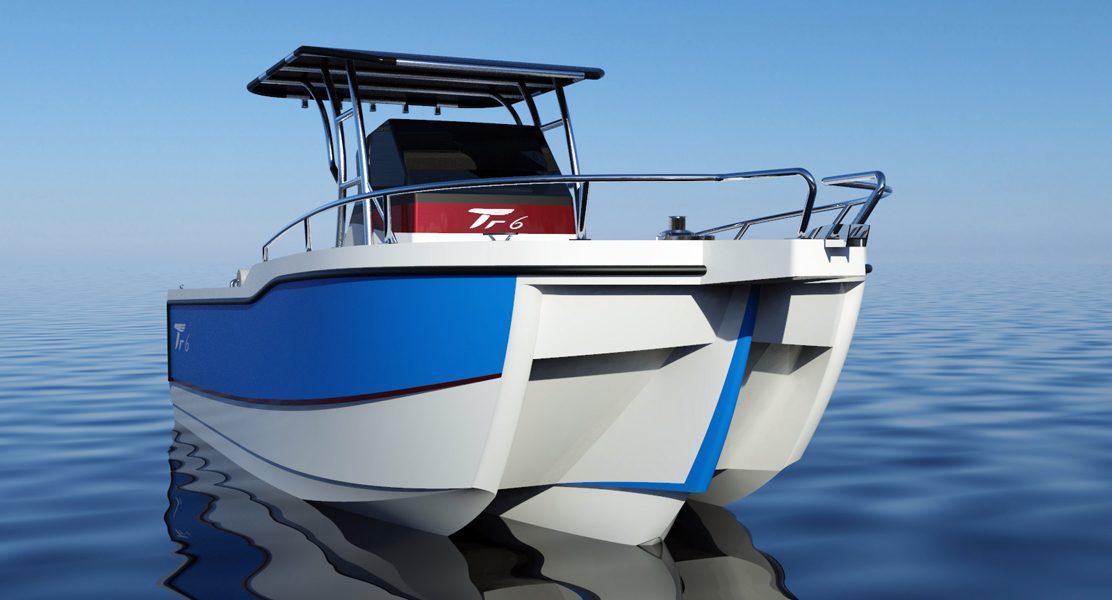

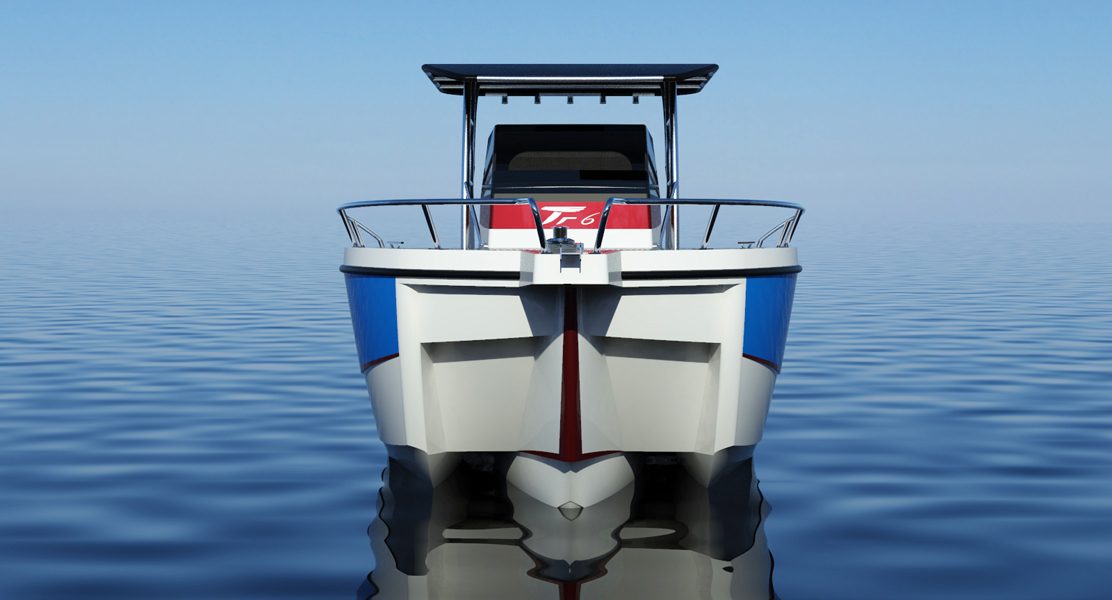

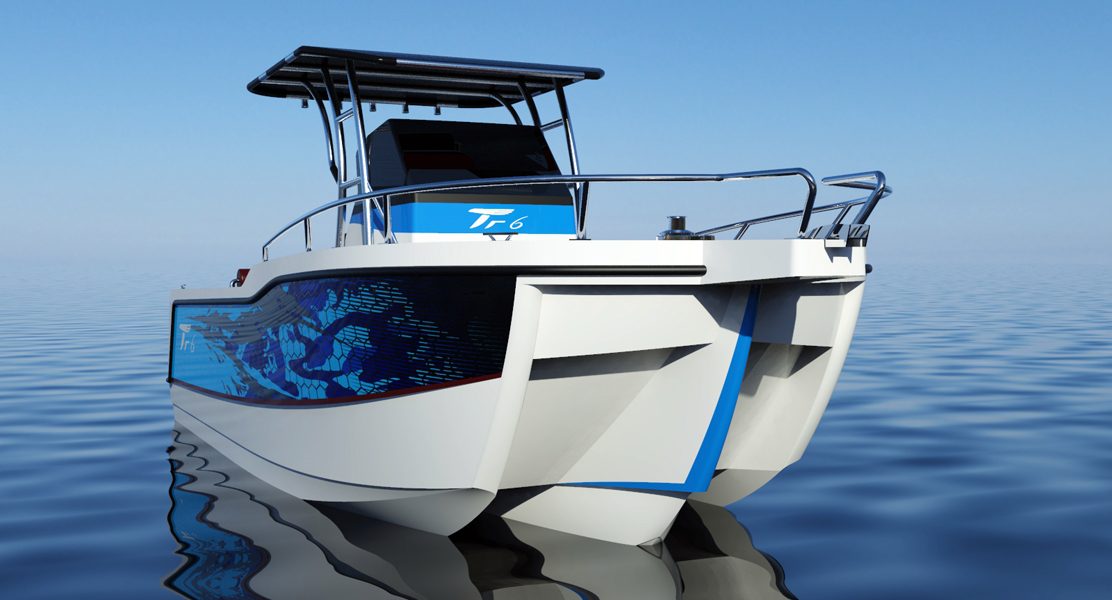

It incorporates an evolved trimaran hull that guarantees stability, safety and high performance typical of multihull boats.

With an overall length of 6.95 m thanks to the engine bracket and the boom, it has a hull length of 5.95 m and offers customization options on deck.

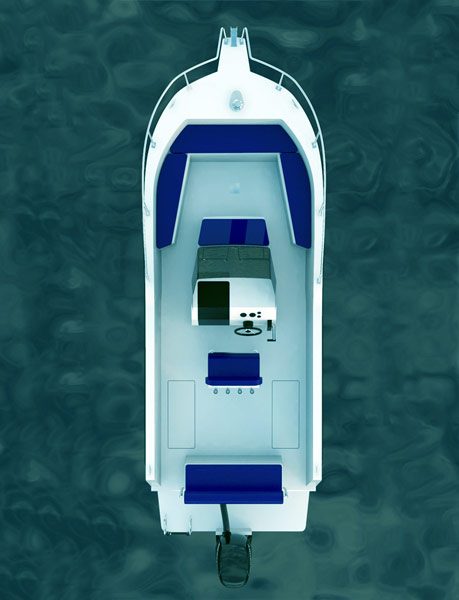

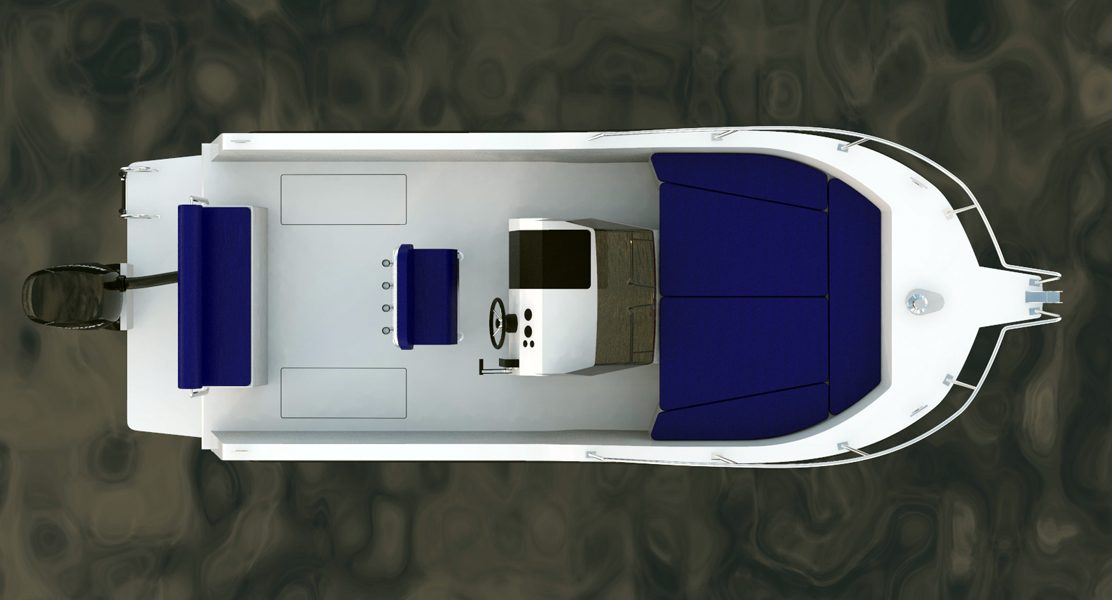

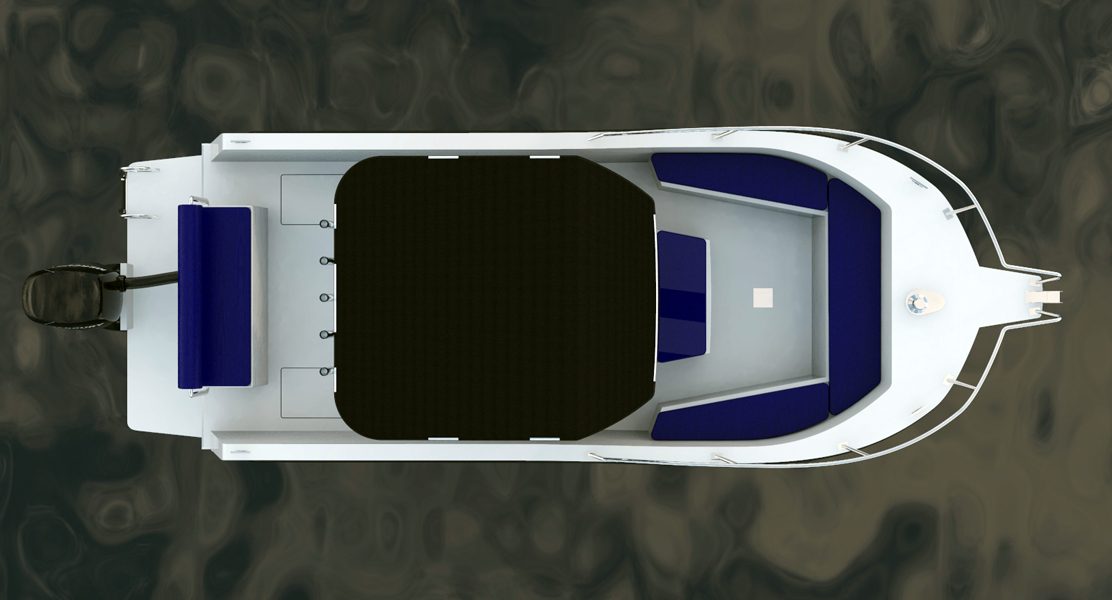

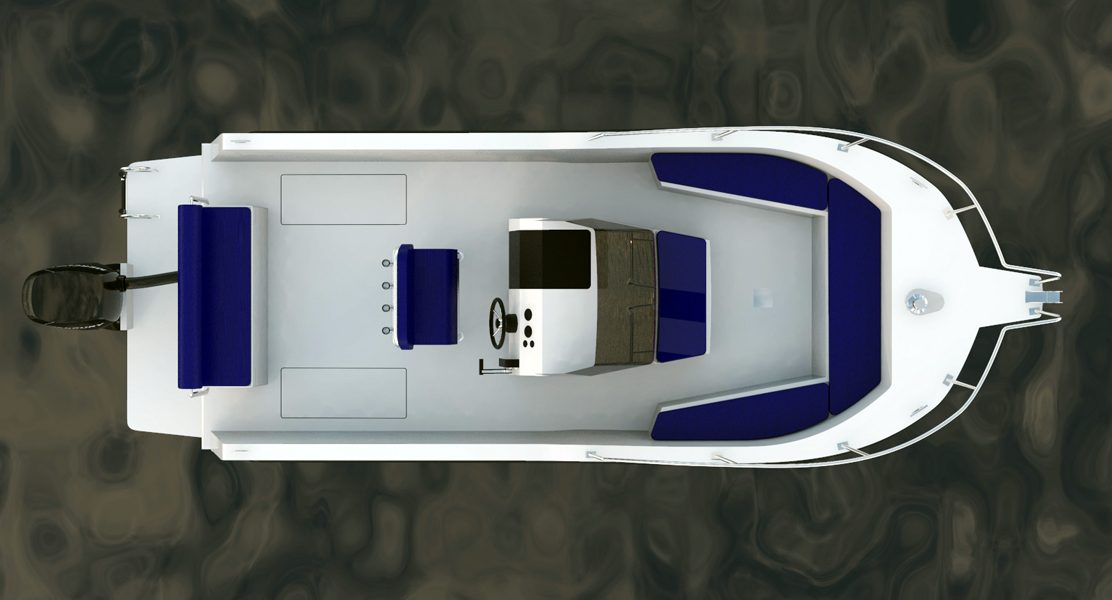

Conceived with a central console, a large and functional helm station has been designed, with access to its interior where a marine toilet is installed.

One of the fundamental characteristics of this model, together with its exceptional trimaran hull, is the double homologation, B4 and C8.

Thus, it will be one of the few models with a hull length of less than 6 meters that has Design Category B, allowing navigation within 25 miles of the coast.

The motorization includes outboard powers from 115 to 200 hp XL tail, being the 150 hp the recommended one.

With its manufacturing system by vacuum infusion and vinylester resin, maximum quality and resistance is achieved, eliminating the possibility of osmosis, while optimizing the final weight obtaining a minimum draft that allows you to navigate in shallow waters, or approach the shore.

What defines us, a unique hull for a special boat.


  • Manufactured in GRP (Glass Fiber Reinforced Polyester) by Vacuum Infusion.
  • GRP steering console with access to the interior through lockable door
  • GRP engine support bracket with lockable door access
  • 200 liter fuel tank installed in the hull below deck with fuel filler inlet and aerator
  • Hull-deck bulkheads and double bottom above the skids
  • 2 stowage compartments (hatches) on deck with hydraulic opening system
  • Lateral hull strip (1 meter to elbow) vinyl coated in a color of your choice
  • 2 GRP platforms at stern with stainless steel support props
  • Anti-skid and self-bailing deck
  • GRP bow boom
  • Bow anchor well hatch
  • Transom protector
  • Upholstered anodized aluminium skipper’s seat with rod holders
  • GRP front seat in front of console
  • GRP U-shaped seating at bow
  • GRP aft bench seat, removable, aft GRP seat
  • Marine toilet inside console
  • Bathing ladder (1 pc) on platform
  • Stainless steel cleats (4 pcs)
  • Stainless steel swivel bearing at bow (1 pc.)
  • Mechanical steering assembly complete with steering wheel
  • Perimetral rubber belt all around the boat
  • Electrical installation in rear of console, watertight and with registration from cabin
  • Glove box in steering position
  • LED navigation lights according to regulations
  • Automatic bilge pump (3 units)
